Any movie required by the documentation project is first placed in the library. It can then be included in any number of topics while being centrally managed from the library: updating the movie in the library will automatically update all instances of that movie in any topic where it has been placed.

Notes:

  • Movies can be huge files and including them in the project can lead to significant saving, loading and generation time;
  • Movies are only compatible with CHM and HTML documentation formats as well as some ePub readers. Also, the movie format has to be considered carefully: it might not render on a device where that specific format's codec hasn't been installed.

For those reasons, we highly recommend the use of online movie hosts such as Youtube or Vimeo:

  • The project and generated documentation will be smaller and faster to generate;
  • The movie host takes care about transcoding the movie to the correct format so that it is visible by anyone.

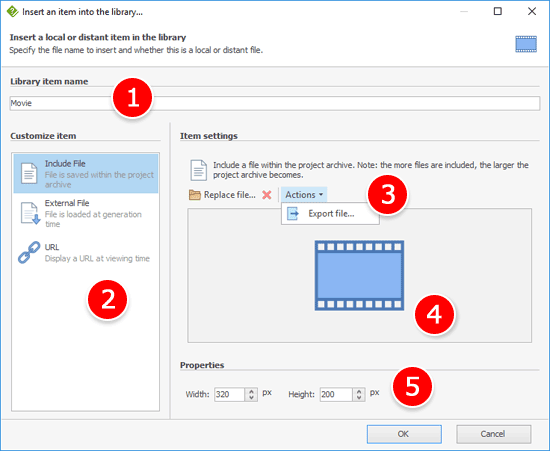

Overview of the user interface

1. Library item name

Choose a unique name for that library item.

2. Customize item

A movie can either be stored within the project or linked from an external location based on the project's requirements. Choosing how it is stored can be decided individually for each item based on pros and cons for that specific item and / or overall documentation project.

Storage

Description

Pros

Cons

Include File

Item file is stored within the project archive

  • Item is always available even when the project is moved to a different location
  • Sharing project is easier as the HND project file contains the item's content
  • The item is always available to the end-user as it is stored with or within the generated documentation file
  • HND project file becomes larger with each included item
  • Replacing an item involves locating it in the library and updating it
  • Items can't be shared between multiple projects
  • Generation time is slower as the file needs to be copied / included in the generated documentation

External File

Item file is stored anywhere on the hard drive or a network location, and included at generation time. Note: The external file path can be absolute, or relative to the HND project file location

  • HND project file is smaller as only the path to the external file is stored
  • Updating the item on the hard drive or network location will update it the next time the documentation is built
  • Items can be shared between multiple projects: each project will include it when needed
  • The item is always available to the end-user as it is stored with or within the generated documentation file
  • Item location must be updated in the library when the HND project file is moved, or the item must be moved with the project
  • Sharing a project requires all external items to be shared too
  • Sharing a project might require an update of all external items' paths
  • Generation time is slower as the file needs to be copied / included in the generated documentation

URL

Item file is stored on a web server, and displayed at viewing time

  • Item is always available even when the project is moved to a different location
  • HND project file is smaller as only the URL is stored
  • Updating the item on the web server automatically updates any client application requesting that item from now on
  • Items can be shared between multiple projects: each project will display it when needed
  • Generation time is faster as the file is not copied / included in the generated documentation
  • A working Internet connection is required at viewing time to request and display the item
  • Only compatible with CHM, HTML and Markdown documentation formats as well as some ePub readers

3. Commands and fields

Include File

  • Insert / Replace file: Locate a file on the hard drive or a network location to
  • Remove file from project: Remove the content of the file from the project
  • Export file: Export the content of the file to the hard drive

External File

  • File path: Absolute or relative path of the file to include at generation time

URL

  • URL: Internet link to the file to display at viewing time

Specifying a URL with a YouTube or Vimeo domain name will automatically generate the proper embed code.

4. Preview

For included files, an icon of the library item is displayed. It is possible to drag and drop a file from a third party application such as the Windows Explorer into the preview to include it or replace the existing file.

5. Properties

Specific properties about the movies such as its width and height.
